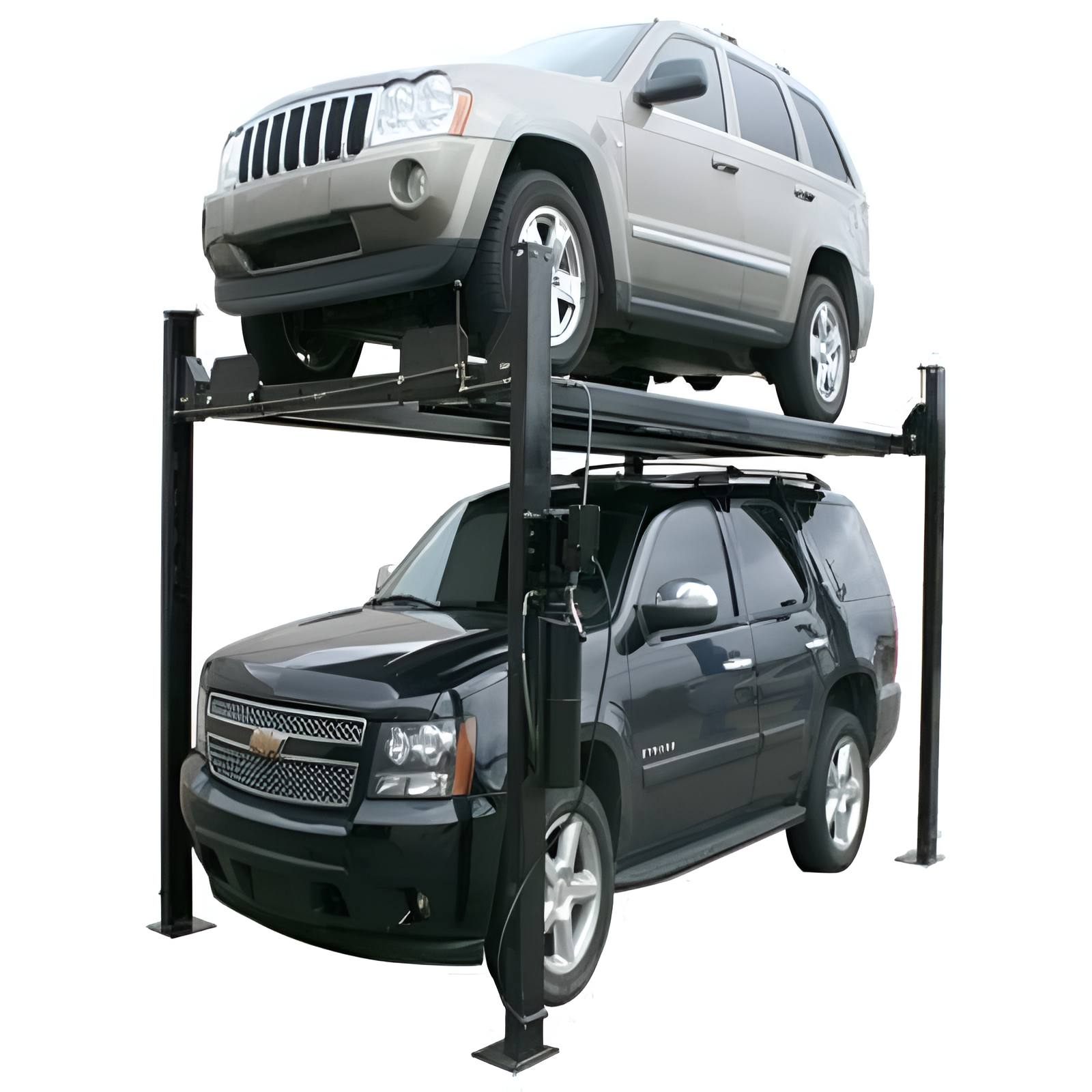

Atlas Garage Pro 8000 EXT, 8,000 lb 4 Post Vehicle Storage Lift- Extra Tall

What if you could double your capacity without expanding your shop's footprint? Your competitors are stacking vehicles efficiently while you're still limited to ground-level work. The Atlas® Garage PRO8000EXT is about to level the playing field.

This 4-post lift is your vertical expansion solution. With an 8,000lb capacity and 79" clearance under the runways, you can now work on a car while storing an SUV or pickup above. The 84.25" lifting height maximizes space usage, while the compact 206.75" length keeps your floor plan flexible. At 104.5" wide (without motor), it fits most shop layouts. The 21.25" wide runways with 37" between them ensure stability and accessibility for various vehicle sizes. Powered by a standard 110-volt system, it's easy to integrate into your existing setup. Included plastic drip trays and a steel jack tray mean you're ready for any job. Don't let vertical limitations cap your business growth - let the Atlas® Garage PRO8000EXT elevate your shop's projects.

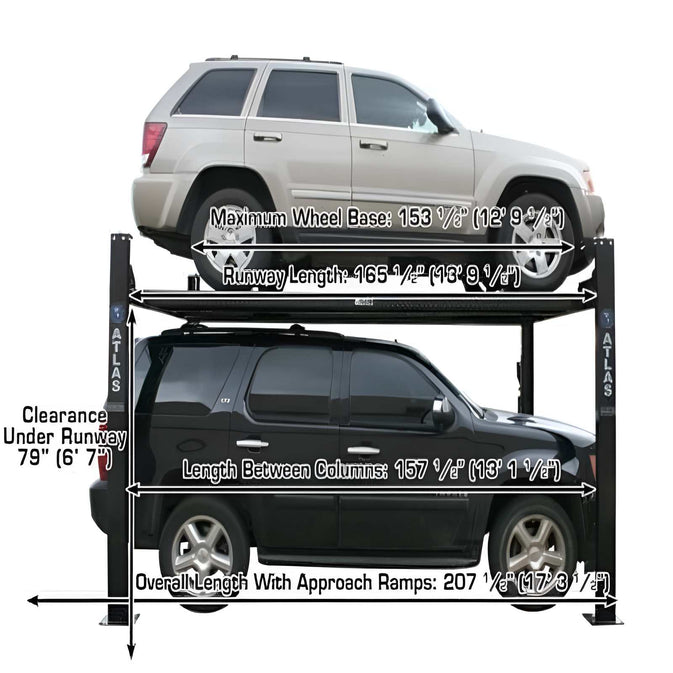

Pro 8000EXT Specifications:

• Capacity 8,000 Lb.
• Lifting Height to Top Of Runway 84 1/4" (7' 1/4")

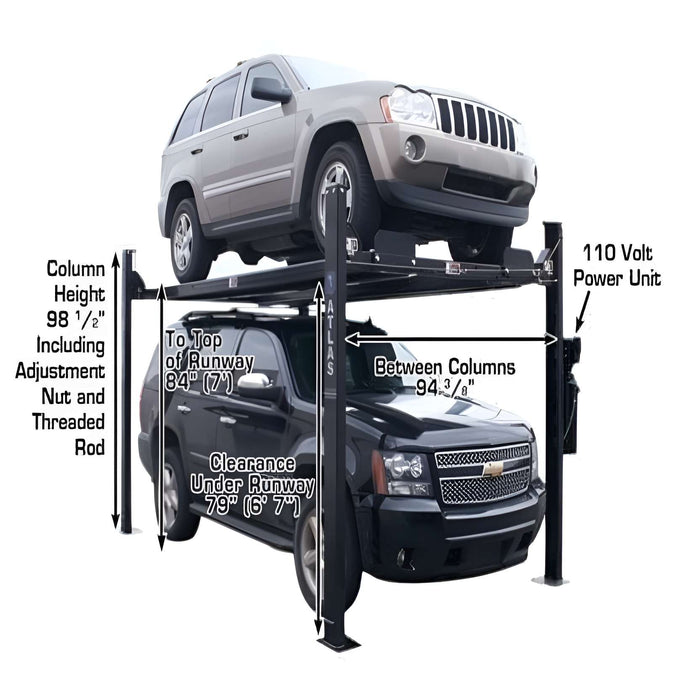

• Clearance Under Runways 79" (6' 7")
• Height Of Columns 98 1/2" (8' 2 1/2")

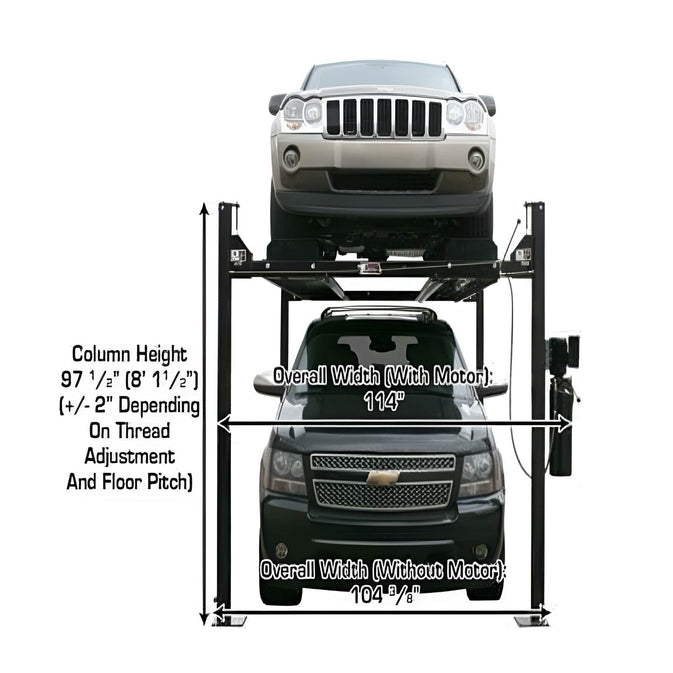

• Overall Width (Without Motor) 104 1/2" (8' 8 1/2")
• Overall Width (With Motor) 115" (9' 7")
• Overall Length With Approach Ramp 206 3/4" (17' 2 3/4")
• Approach Ramp 37" (3' 1")

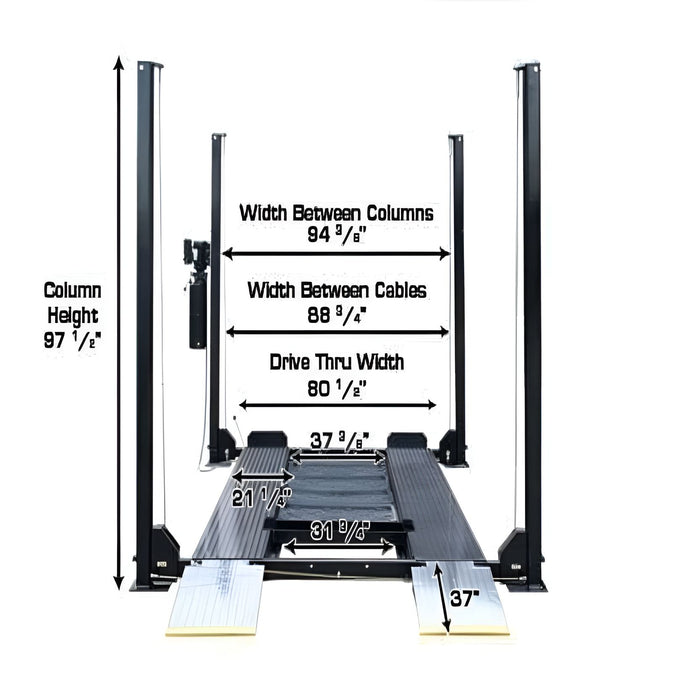

• Runway Width 21 1/4" (w/ Rails) or 18 3/4" (Driving Surface)
• Runway Length 165 3/4" (13' 9 3/4")
• Runway Thickness 4 1/2"
• Width Between Runways 37" (3' 1")
• Width Between Runway Rails 31 1/2" (2' 7 1/2")
• Outside Runway To Outside Runway 74 5/8" (6' 2 5/8")
• Clearance Between Columns 94 1/2" (7' 10 1/2")
• Length Between Columns 157 1/2" (13' 1 1/2")
• Maximum Wheel Base 153 1/2" (12' 9 1/2")
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2" (6' 8 1/2")

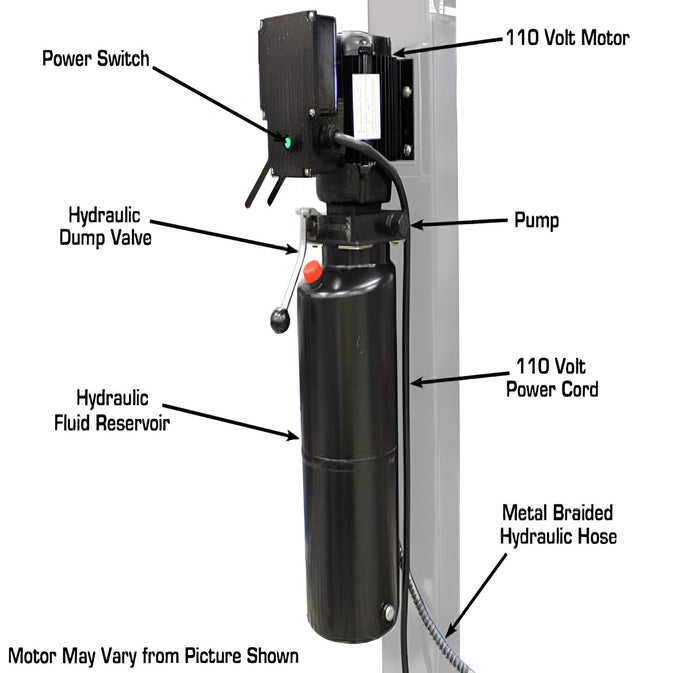

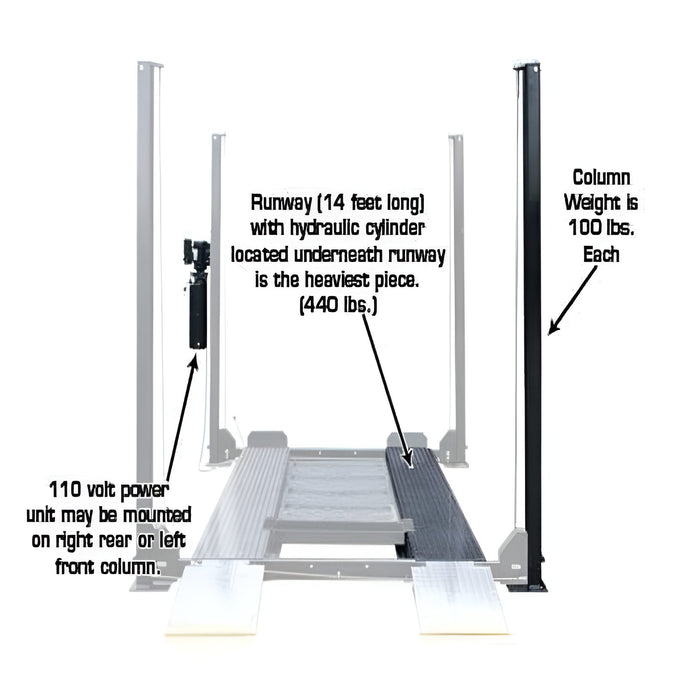

• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,850 lb.
• Pallet Size:  167" Long x 28-1/2" Tall x 22" Wide

Pro8000 EXT 8,000 lb 4 Post Vehicle Storage Lift Special Features:

• Capacity: 8,000 lb
• Style: Extra Tall
• Design Free Standing & Portable
• Diamond Plated Runways

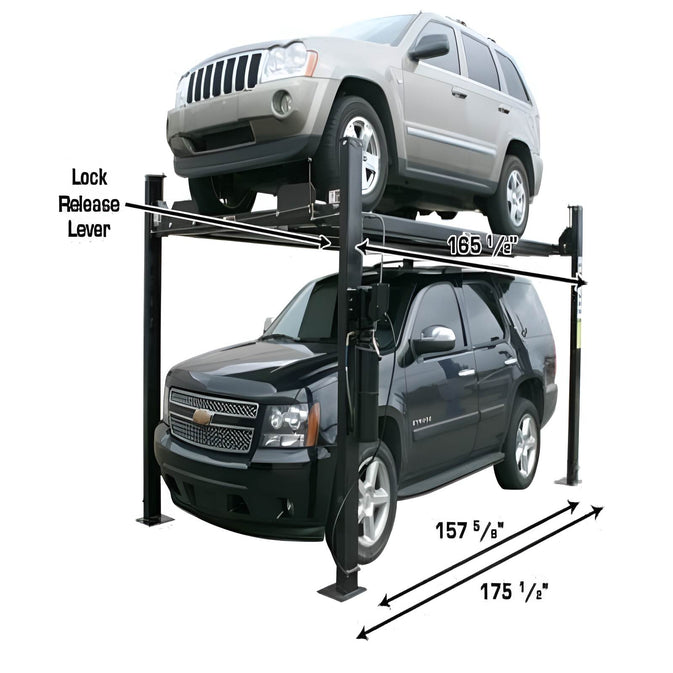

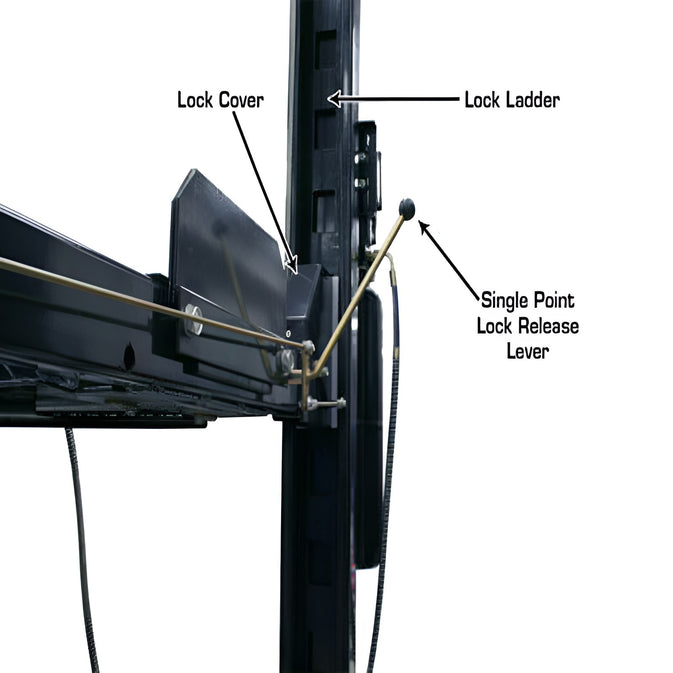

• Lock Release: Single-Point
• Lock Design Lock Ladder w/ Double Lock Safety System
• Warranty: 2 year Structural; 1 year Hydraulic ‐ Parts Only
• Unit Includes:

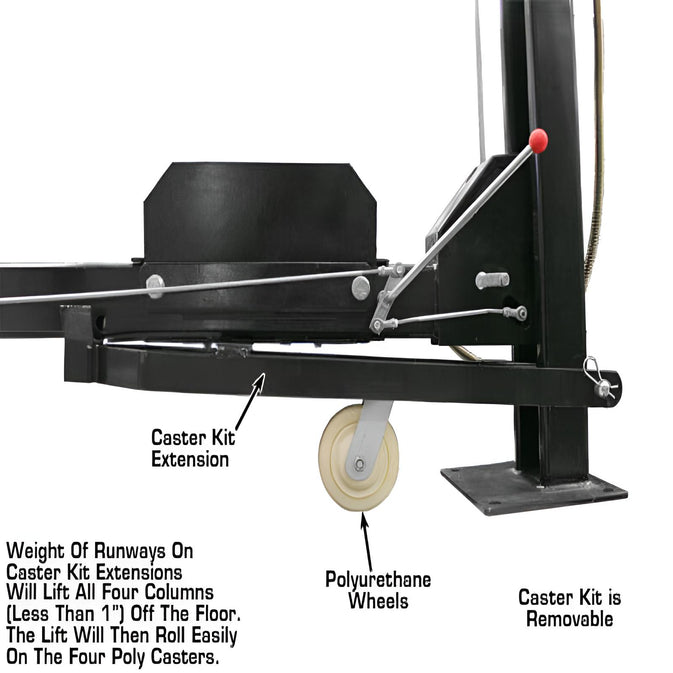

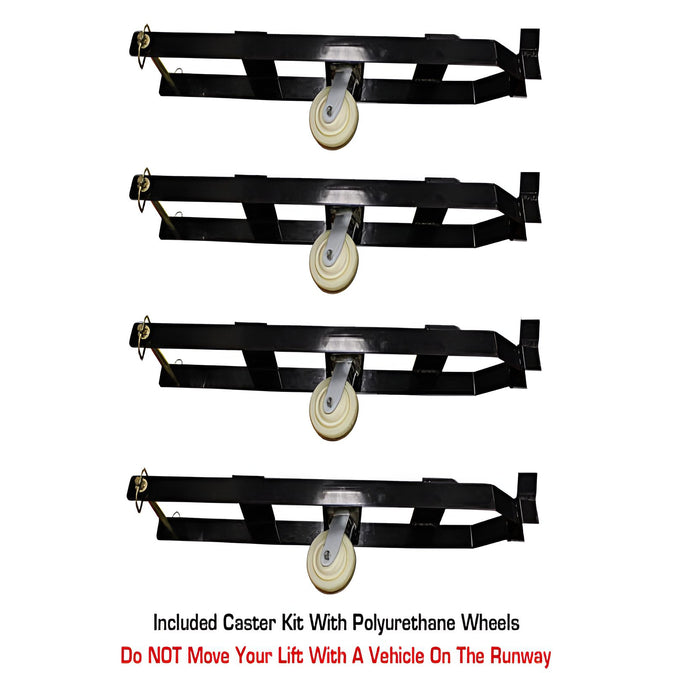

  •      Caster Kit with Polyurethane Wheels Included

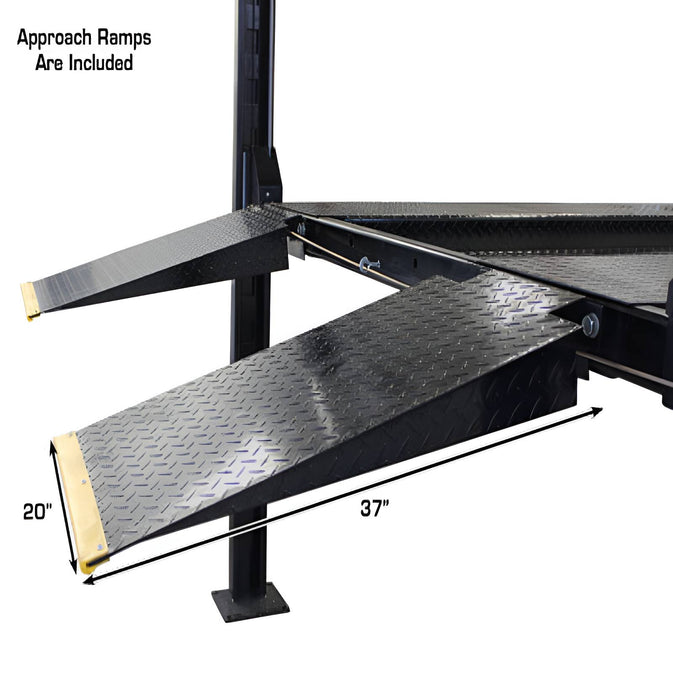

  •      Steel Approach Ramps Included

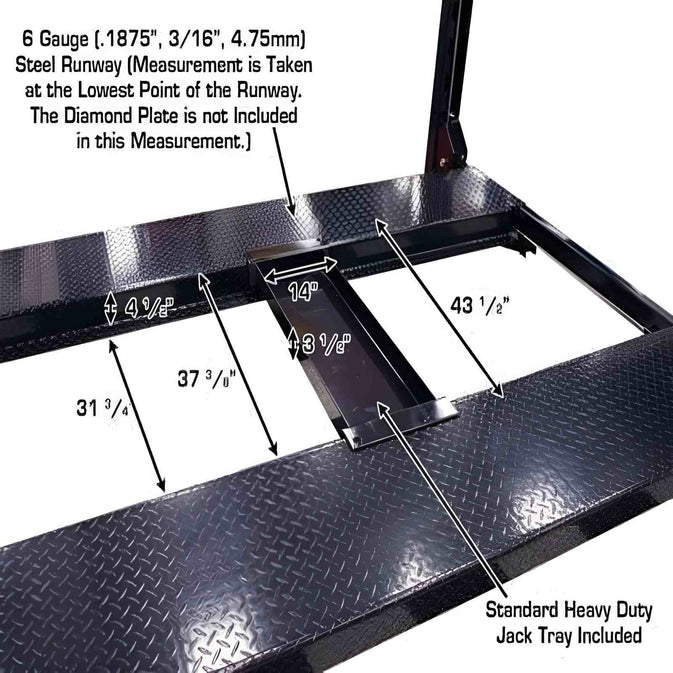

  •      Steel Jack Tray Included
  •     4 Plastic Drip Trays
  •     4 Wheel Stops

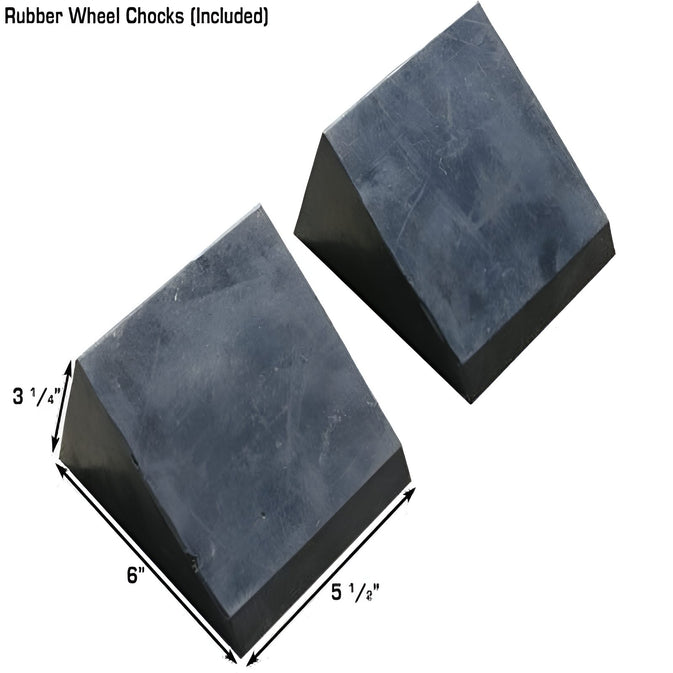

  •     2 Rubber Wheel
• Buy as a Combo Atlas PRO8000EXT + RJ35
• Optional Item(Sold Separately)
  • 37" Steel Jack Tray

  • 37" Plastic Drip Tray
