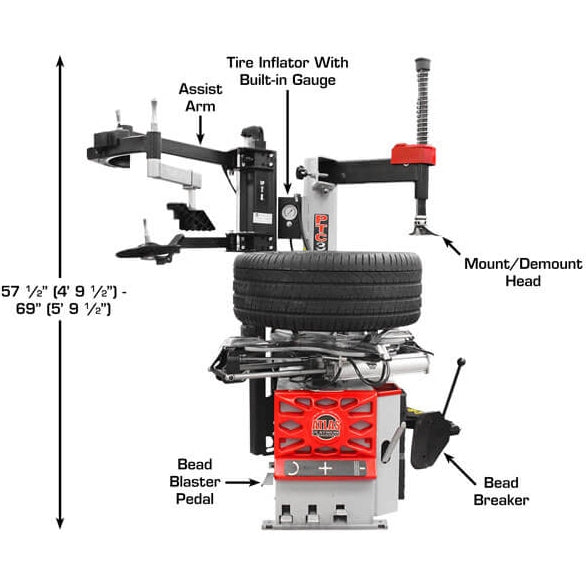

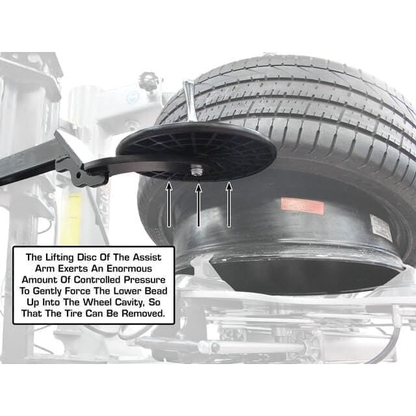

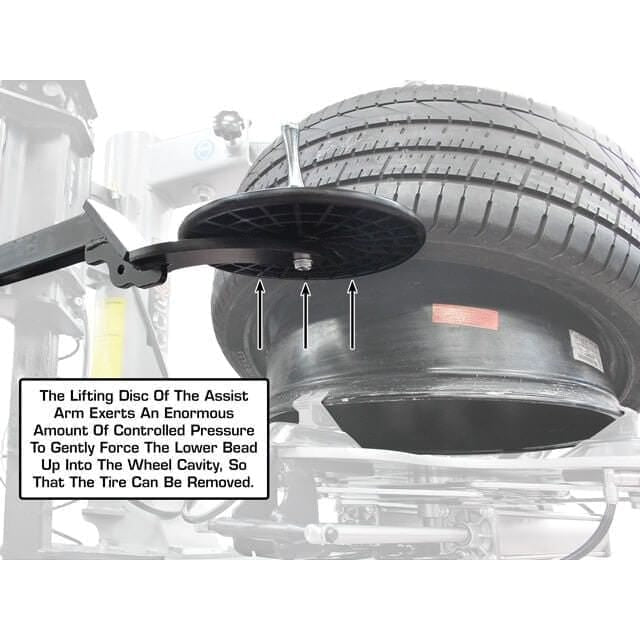

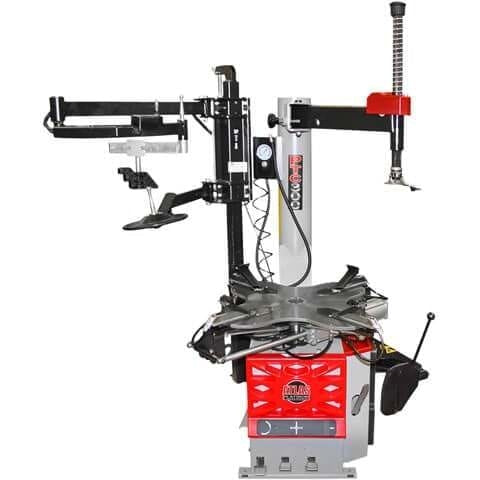

The Atlas® Platinum PTC300 represents the evolution of the most familiar tire changer configuration found in high volume tire shops around the world. The PTC300 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.
The PTC300 boasts a 26-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.
The Atlas® PTC300 requires some assembly after purchase.
Features
-
Platinum Rim Clamp/Swing Arm Tire Changer

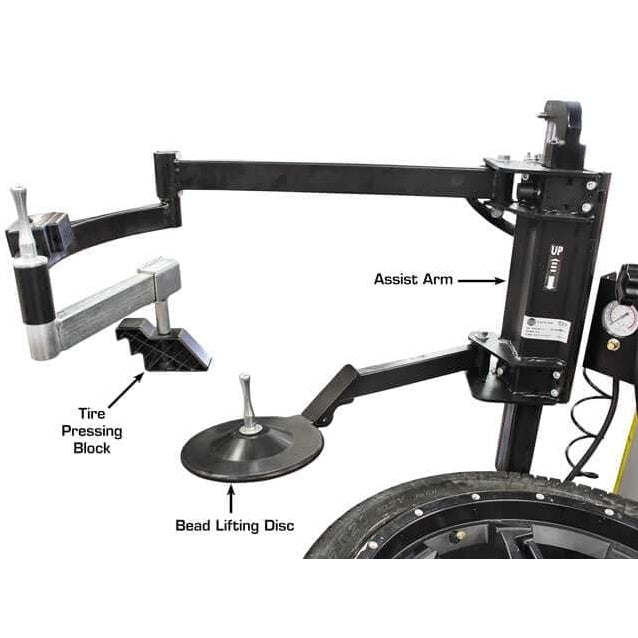

Left Hand Assist Arm Included
Extra-Large Star-Shaped Turntable

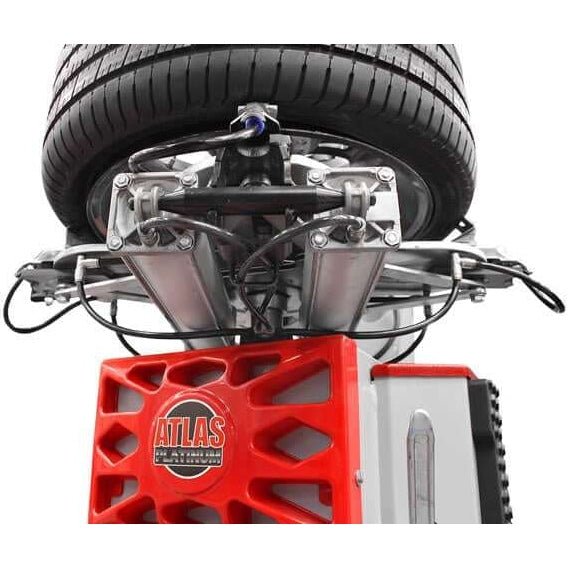

Air operated jaws & bead breaker (external air supply required)
Electric turntable

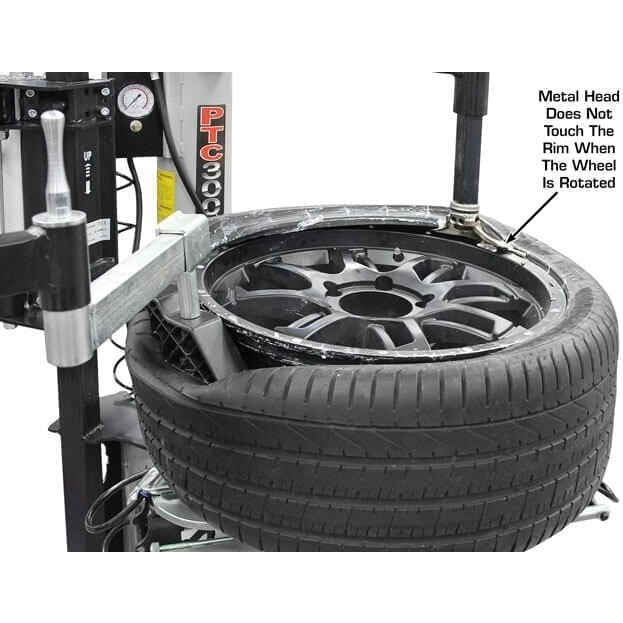

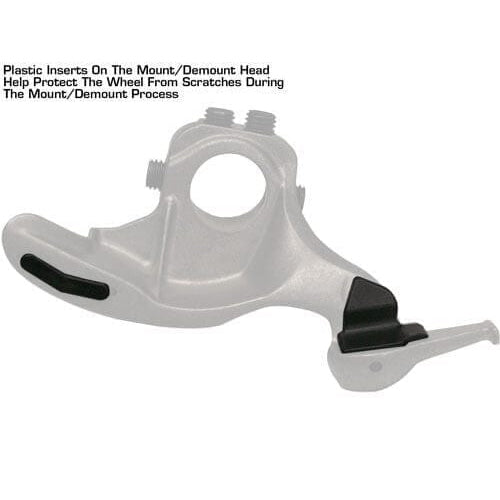

Metal mount/demount head w/ replaceable plastic inserts
Column mounted inflator box w/ gauge Included

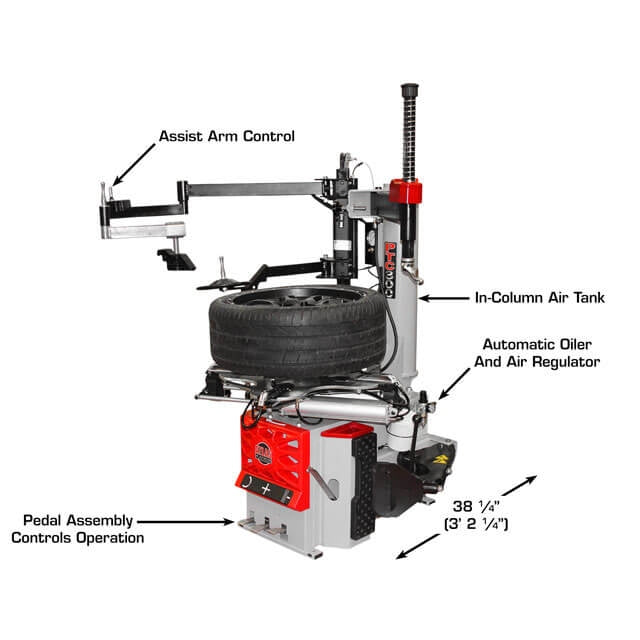

Filter/Regulator/Lubricator Included

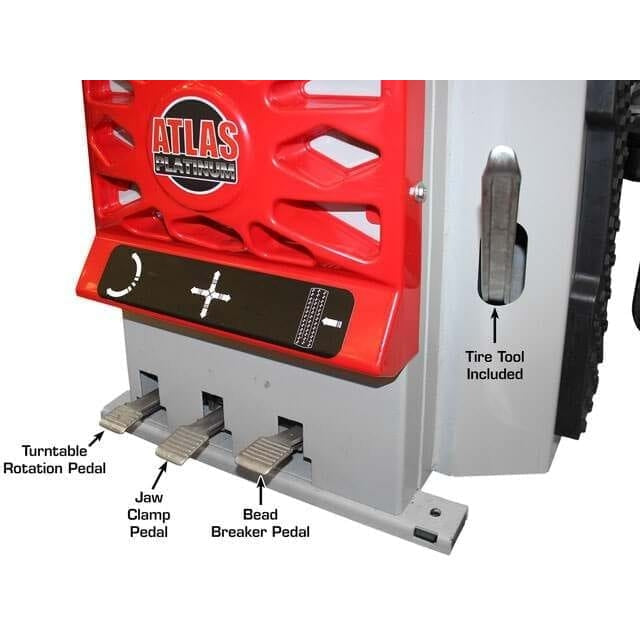

Tire Tool Included
Lube Bucket with Brush Included
Set of Large Plastic Jaw Covers Included
Plastic Cover for Bead Breaker Shovel Included
Multiple Replacement Plastic Inserts for M/D Head Included
Built in “Beadblaster”
Replacement Parts & Wear Items Always in Stock
2 Year Parts Only Warranty
Specifications
-
Atlas® Platinum PTC300 Specifications
Rims
Steel, Aluminum, Alloy

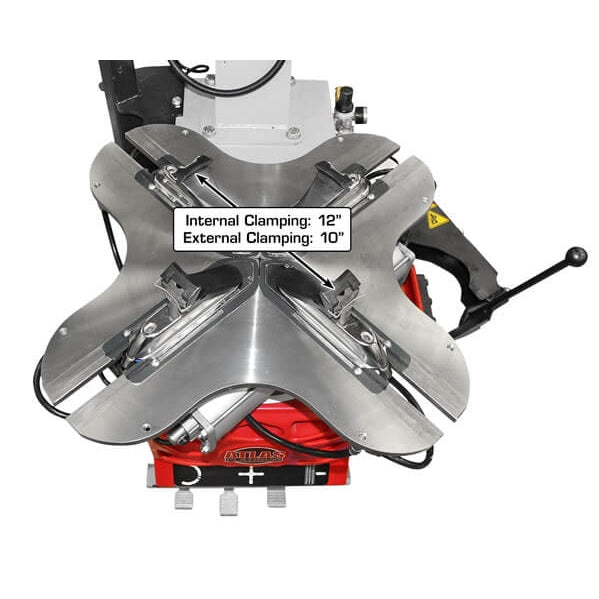

External Locking Rim Dimension
10" - 24"

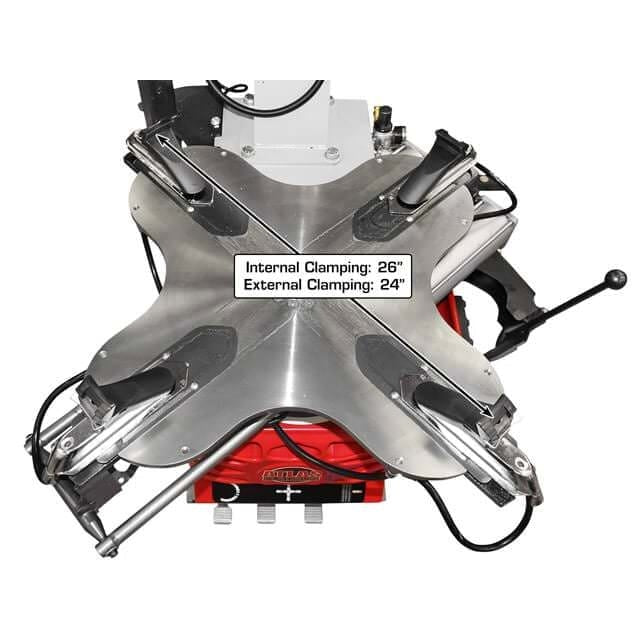

Internal Locking Rim Dimension
12" - 26"
Maximum Tire Diameter
43"
Maximum Wheel Width (Bead Breaker)
15"
Turntable Rotating Speed
7 RPM

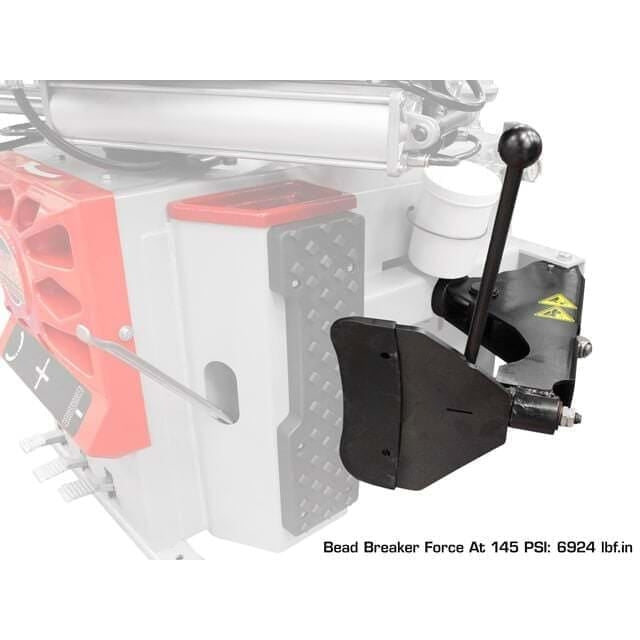

Bead Breaker
6,924 LB. Force
Air Requirement
120-145 PSI
Operating Voltage
110volt
Shipping Weight
620 lbs.
