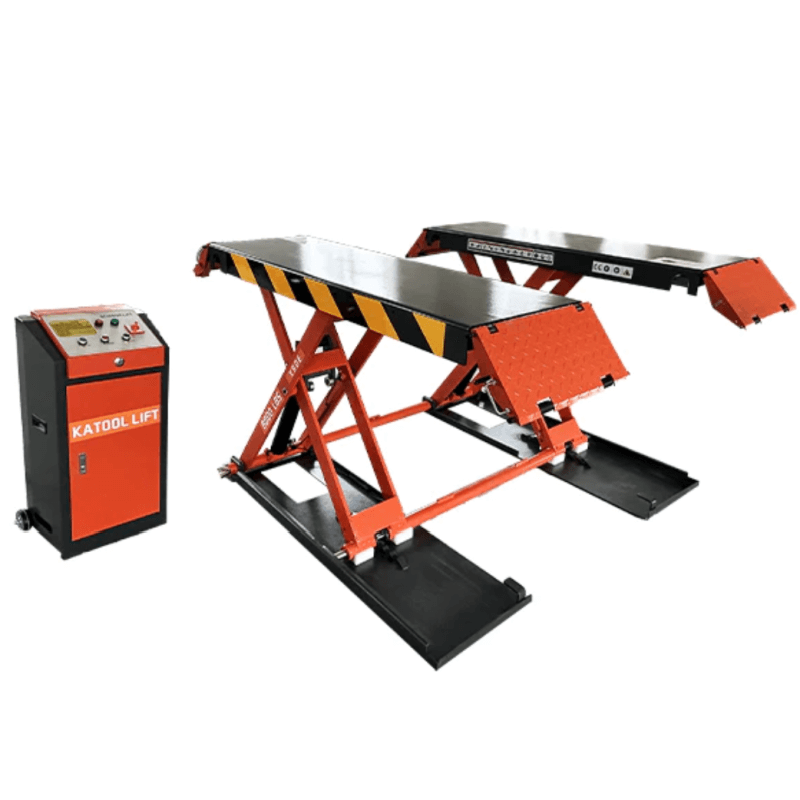

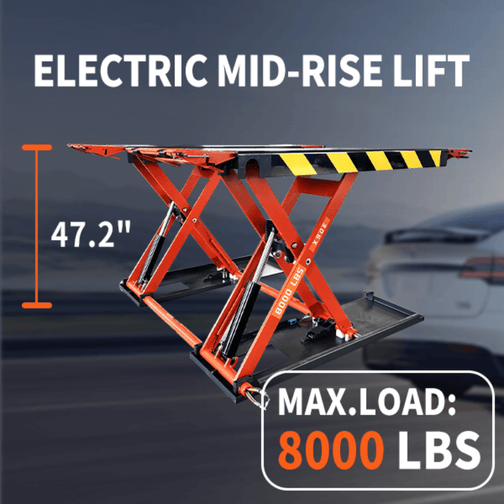

Katool KT-X90E 8,000 lb Mid Rise Scissor Lift - Electric Lock

Your current scissor lift lacks the power, safety features, and versatility you need to handle demanding jobs efficiently. And you know it! Limited lifting capacity, safety concerns, and compatibility issues with various power supplies can slow your shop down and create unnecessary obstacles in your workflow. You don’t want that.

The Katool KT-X90E Lift eliminates these frustrations. Bragging an impressive 8,000-lb lifting capacity, this lift tackles even heavy-duty vehicles with ease with a max lift height of 47 inches. A focus on secure operation through features like a height limit switch and composite rubber lifting blocks. Versatility is built-in with a choice of 110v or 220v power options and a self-lubricating system for maintenance-free operation. The drive-up ramps accommodate a wider range of vehicles, and the top-level hydraulic system with an aluminum motor ensures reliable performance, even during prolonged use. Effortlessly handle all your lifting needs with the Katool KT-X90E!

Scissor Lift KT-X90E Specifications:

• Max. Lifting Capacity: 8000 lbs
• Max. Lifting Height: 47"
• Min. Lifting Height: 4.3"
• Lifting Time: 30 seconds
• Platform Length: 81.5"
• Platform Width: 20.1"
• Width between Platforms: 32.2"
• Rated Oil Pressure: 20 MPa
• Power: 110v (30amp) or 220v
• Lock Positions: 5
• Oil: AW-46 or AW-32 (colder climates)
• Pallet Dimensions:
  • (1) 78" x 67" x 9" - 1,179lbs
  • (1) 37" x 16" x 16" - 110lbs
• Optional: Support Bars
  • Overall Length: 73"
  • Pin Distance: 48" to 59" Wide
  • Adapter Height: 6.2" to 8" Tall

KT-X90E Special Features:

• Lifting capacity: 8000lb
• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
• Flush mount design
• Starting-up system design

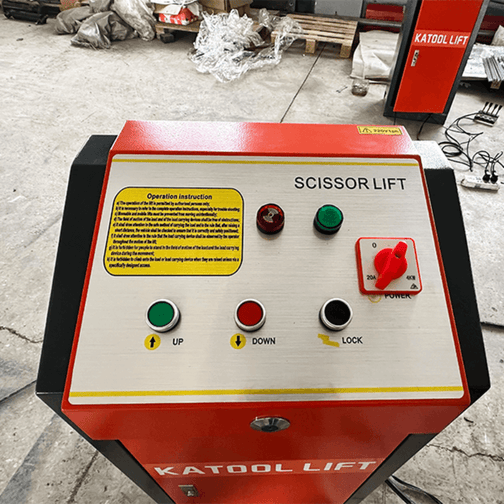

• 24V safe control system
• Height limit switch

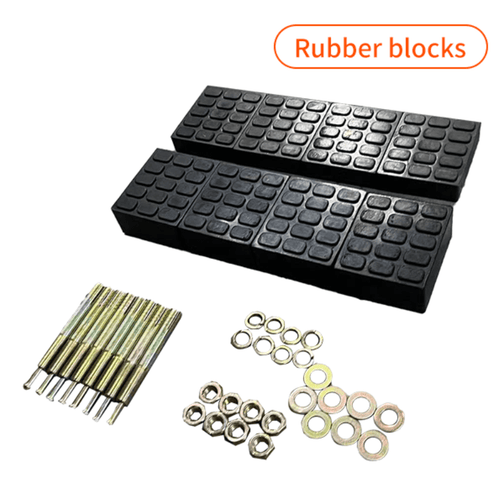

• Composite rubber lifting blocks included
• Comes with self-lubricated bushing and bearing
• Drive-up ramps lock design as platform extension for long vehicles

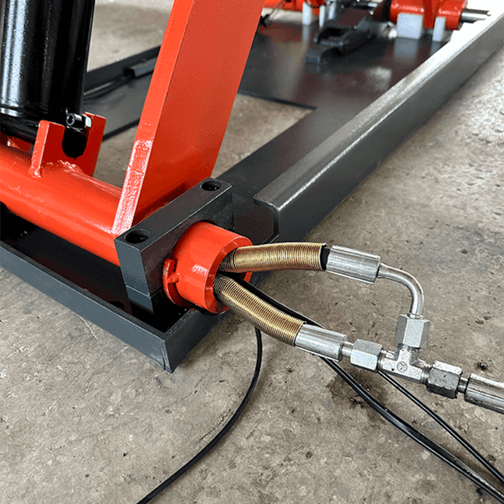

• Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
• Power: 110v/220v/60Hz, single phase

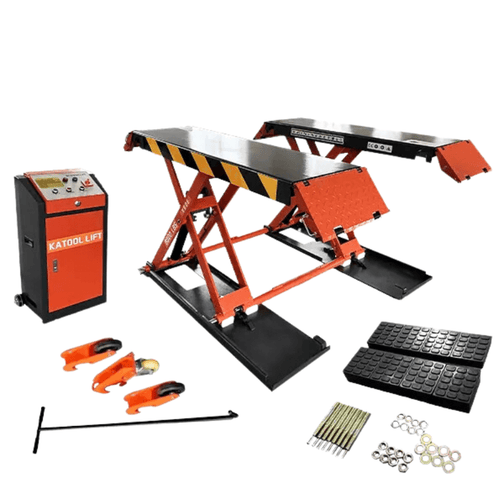

• Includes: Caster Kit for Mobility
• Katool Warranty:
  • One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
  • Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.

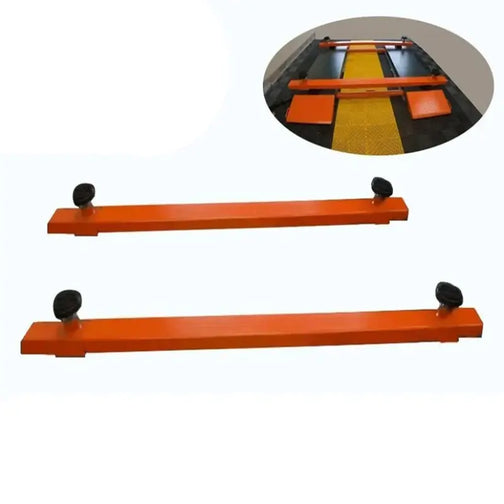

• Optional: Support Bars - Sold Separately
  • Support Bars spread the weight out evenly and have more adjustment for lifting SUVs and full frame vehicles.
