Description
The Pro-9D is now back by popular demand!
Your garage feels more like a cave than a car sanctuary. That trusty old floor jack is giving you a backache, and your projects are begging for some TLC. But finding a lift that's both powerful and versatile seems like a pipe dream. Wouldn't it be nice to have a lift that can handle everything from your lowered sports car to your monster truck?

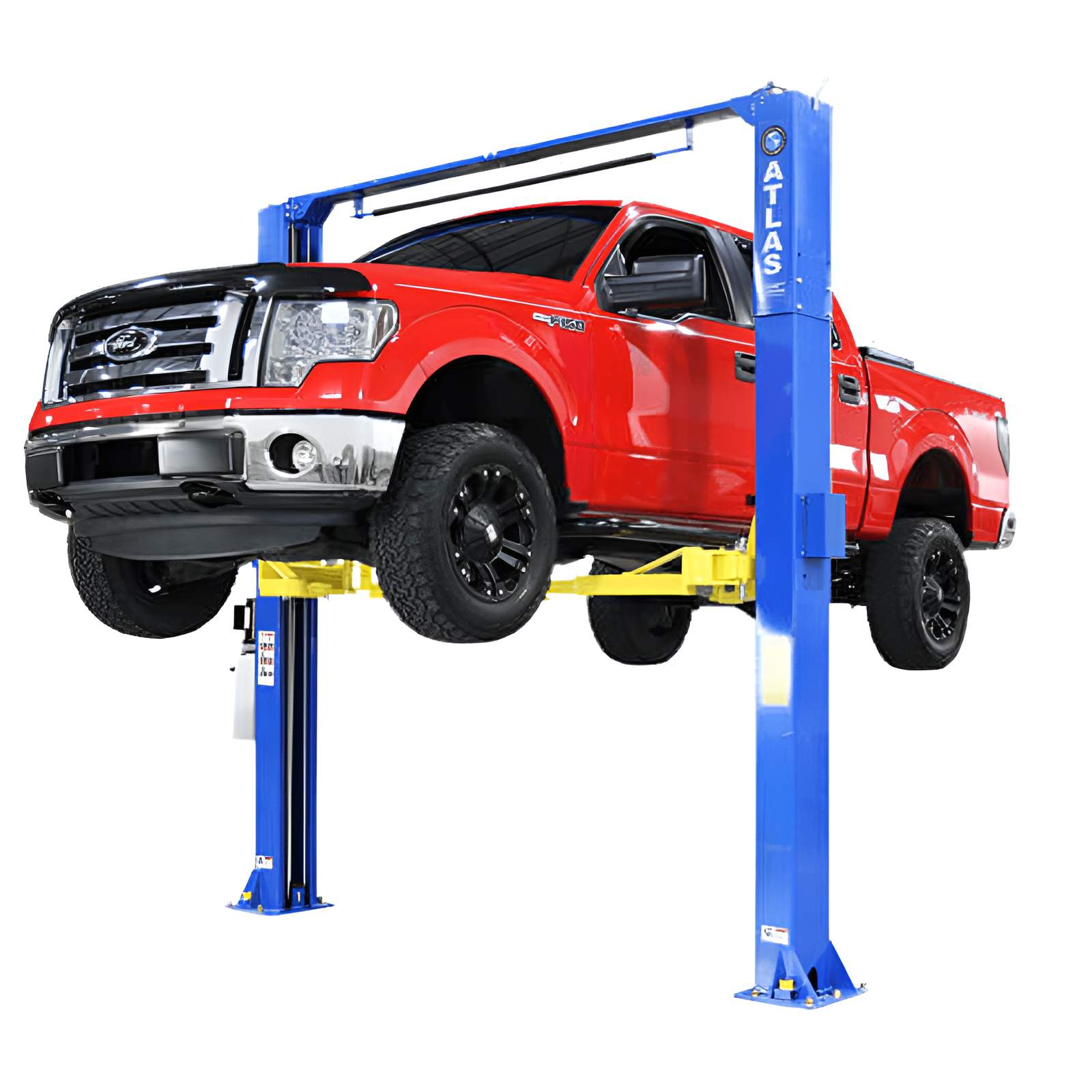

Enter the Atlas PRO-9D—the two-post lift that's about to make your garage dreams come true. Solution: With its 9,000-pound lifting capacity, this 12-foot colossus is ready to tackle any vehicle you throw at it. Its clever arm design switches between symmetric and asymmetric configurations, giving you the flexibility of a yoga master. The EZ-metric lift arms can shimmy under the lowest cars while still having the oomph to hoist hefty trucks. And with its dual direct drive cylinders and simplified design, the PRO-9D is built to be your faithful garage companion for years to come. Don't let your garage hold you back—let the Atlas PRO-9D lift you to new heights of automotive bliss!

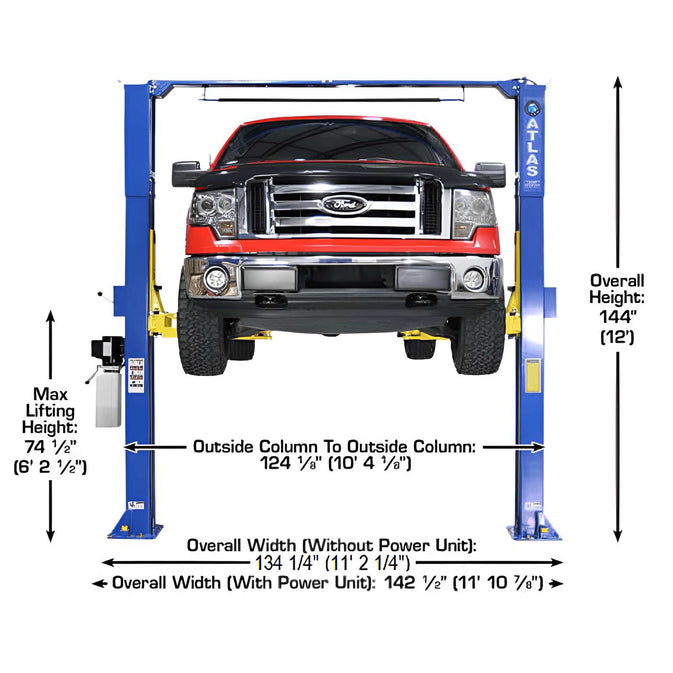

Atlas PRO9D Specifications:
- Capacity: 9,000 LB.
- Overall Height: 144" (12’)
- Overall Floor Width: 134 1/2" (11’ 2 1/2")
- Outside Column to Outside Column: 124 7/8" (10’ 4 7/8")
- Maximum Lift Height (Without Adapters): 68"

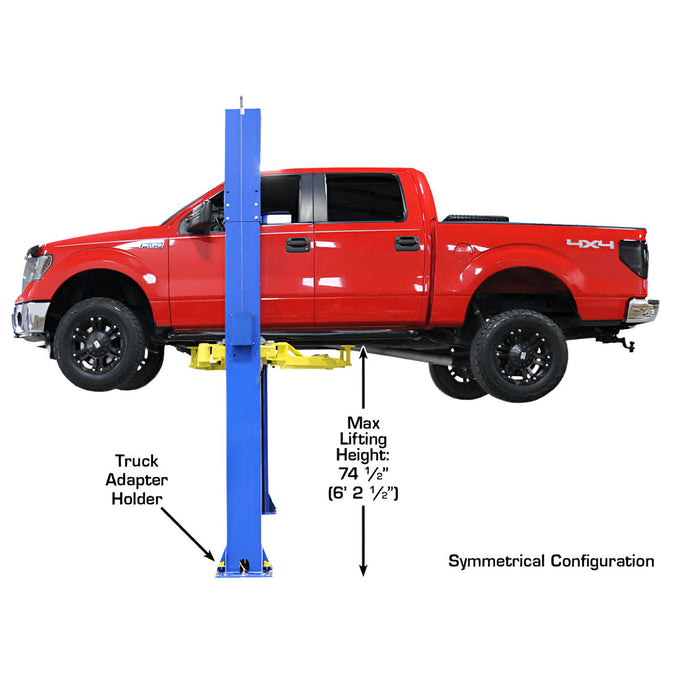

- Maximum Lift Height (With Adapters): 74 1/4"
- Minimum Arm Height: 4 1/2"
- Inside Column: 110” (9’ 2”)
- Drive Thru: 100” (8’ 4”) Symmetric / 90 1/2" (7’ 6 1/2”) Asymmetric
- Column Size: 7 1/4" x 11"
- Column Thickness of Steel: 5mm
- Base Of Lift: 14 1/4" x 18"
- Motor/Electrical Requirement: 220 volt single (1) phase. A 30 amp breaker is recommended.
- Oil Requirement: 3-5 Gallons AW32/AW46 (NOT INCLUDED)

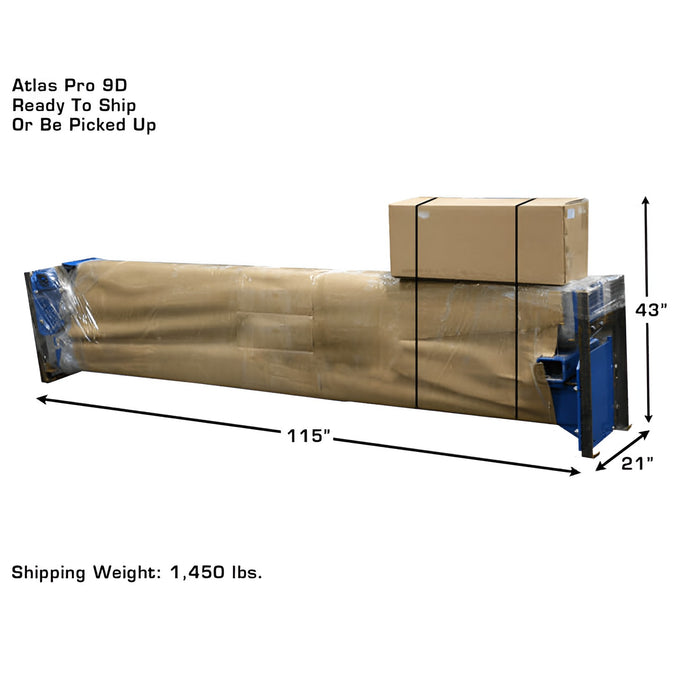

- Shipping Weight: 1,450 LBS.
- Adapter Heights: 4 Each 1.5”, 5”
- Arm Hole/Adapter Peg Size: 1.5”
- Concrete Requirement: Requires a minimum of 4" of concrete with a 3000 psi rating.
Atlas PRO-9D Lift Special Features:
- 9,000 lb. Capacity
- Overhead, Open-Floor design
- Overall Height: 144″ (12′)
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints

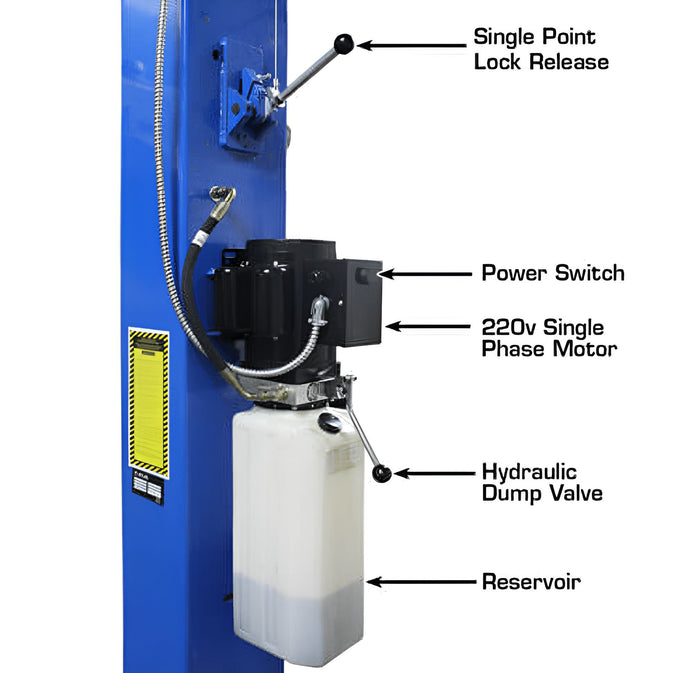

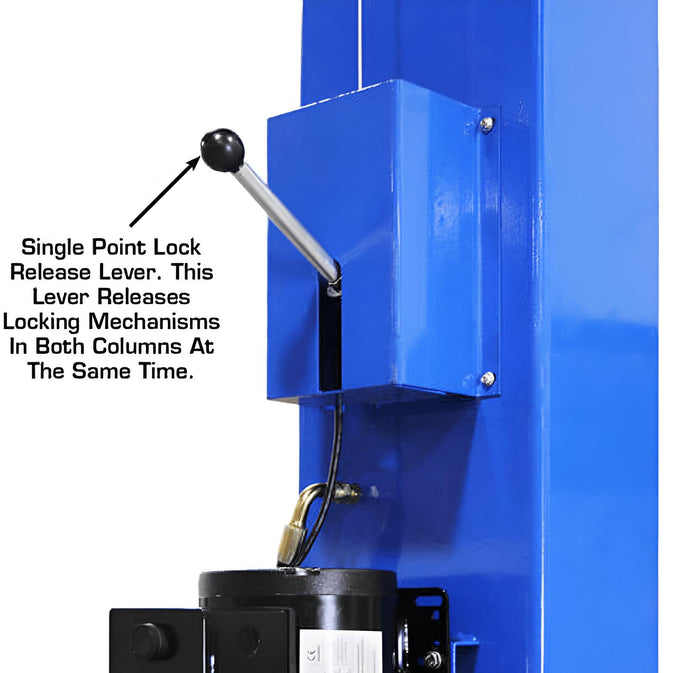

- Single-Point Lock Release

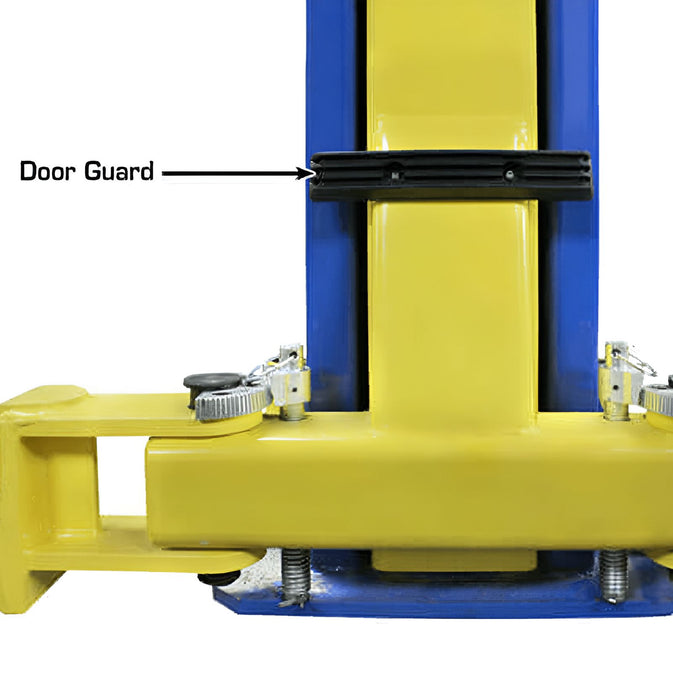

- Rubber Guards on Carriages

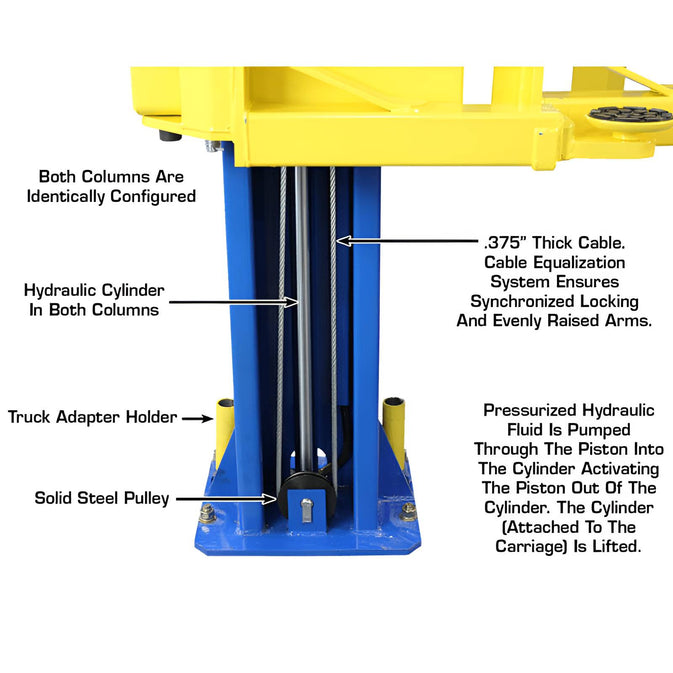

- Dual Direct-Drive Cylinders
- Powder Coat Finish

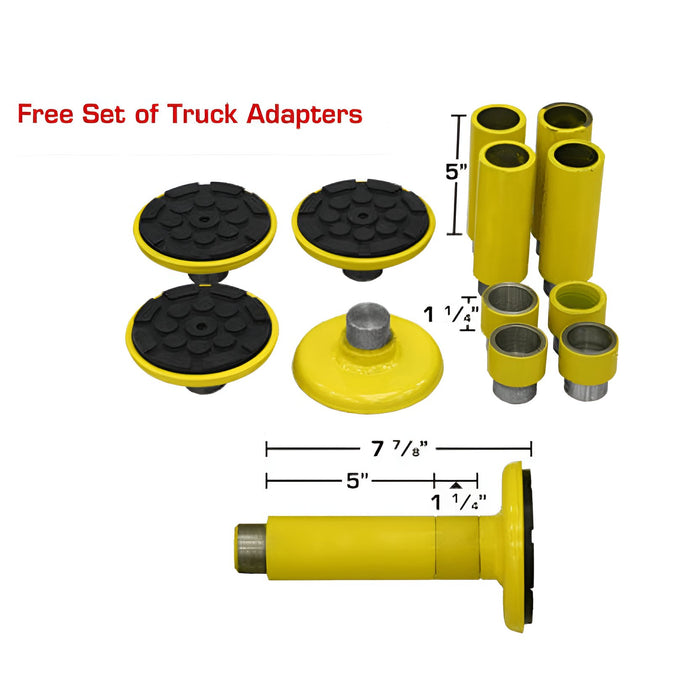

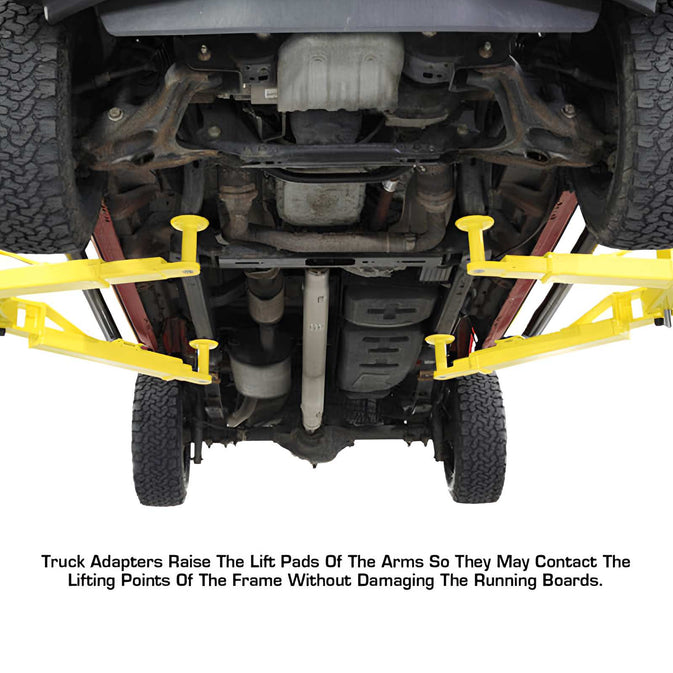

- Free 8 Piece Truck Adapter Set

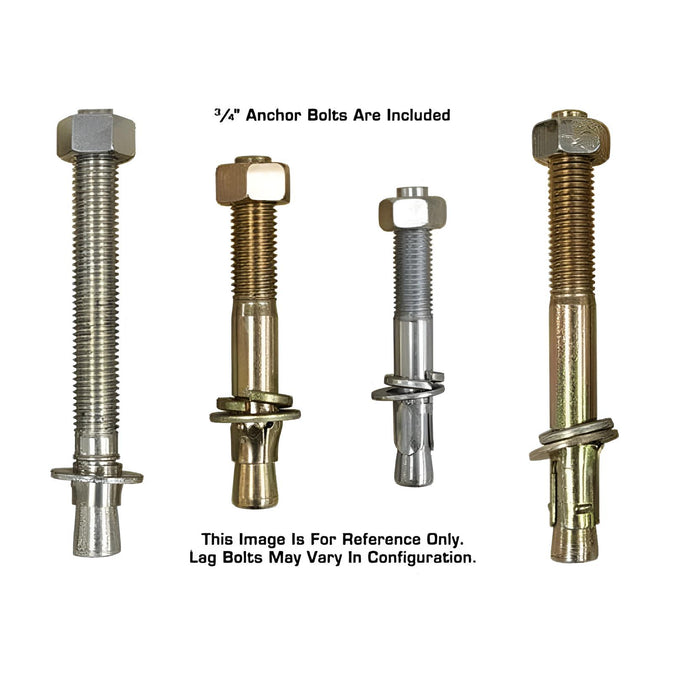

- Mounting Hardware Included
- Shipping Weight: 1,450 lbs.
- 5-year Structural Warranty, 2-year Hydraulic-Power Warranty
