Description

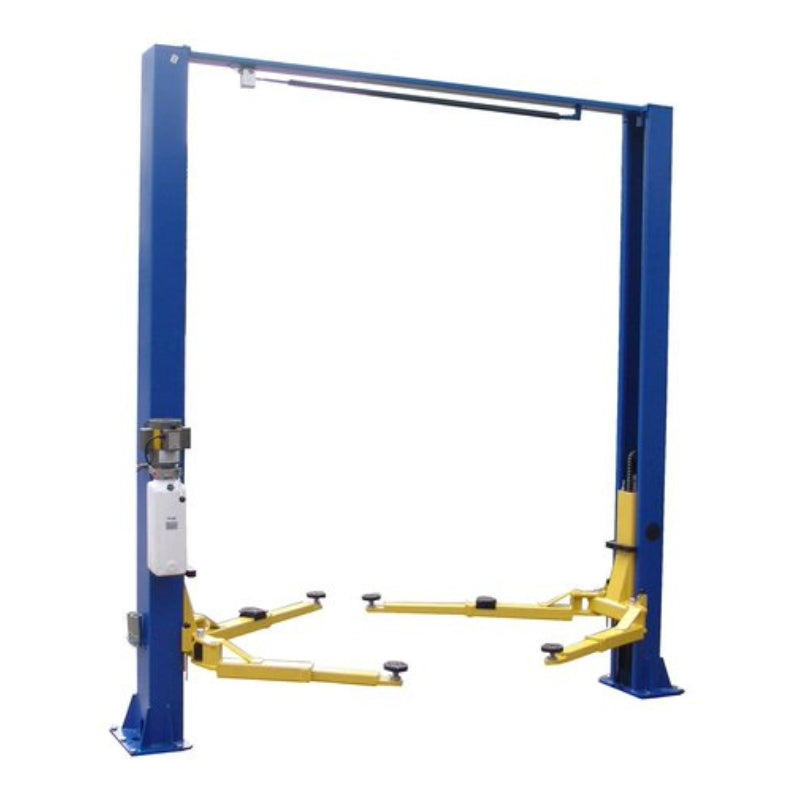

Are you tired of struggling with those pesky low-clearance vehicles in your garage? The Tuxedo TP9KACX Two Post Clear Floor Lift is the ultimate powerhouse you never knew your garage needed. With a jaw-dropping 9,000 lbs capacity, it's ready to handle even the bulkiest cars and SUVs with ease. This baby can lift them up with a mere flick of a switch, thanks to its impressive 4-inch minimum pad height.
How about we about that drive-thru clearance of 96 inches? You'll be zipping in and out of this lift without a care in the world. The asymmetric arms on this lift are designed to give you better access to those hard-to-reach areas, making your repair and maintenance tasks a breeze. Its versatile lifting options with the short arm reach of 29 to 41 inches and the long arm reach of 37 to 57 inches mean you can tackle a wide range of vehicle sizes with confidence. And let's not forget the impressive 2,250 lbs maximum load per arm - this lift is built to handle anything you throw at it without breaking a sweat.
TP9KACX Lift Specification:
- Capacity: 9,000 lbs.
- Height Overall: 142-7/8″
- Width Overall w/ Power Unit: 138″
- Max Lift Height: 72″
- Width Between Columns: 113-5/8″
- Min. Pad Height: 4″
- Drive Thru Clearance: 96″
- Lifting Speed: 50 seconds
- Asymmetric / Symmetric: Asymmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach – min/max: 29″-41″
- Long Arm Reach – min/max: 37″-57″
- Narrow Bay Setting: Not applicable
- Max Load Per Arm: 2,250 lbs.
- Cable Thickness: 3/8"
- Ship Weight: 1,370 lbs.
- Power: 220V – 20 AMP – 1 PH
- Pallet Dimension : 148" 18" 42"
TP9KACX Parts and Special Features:

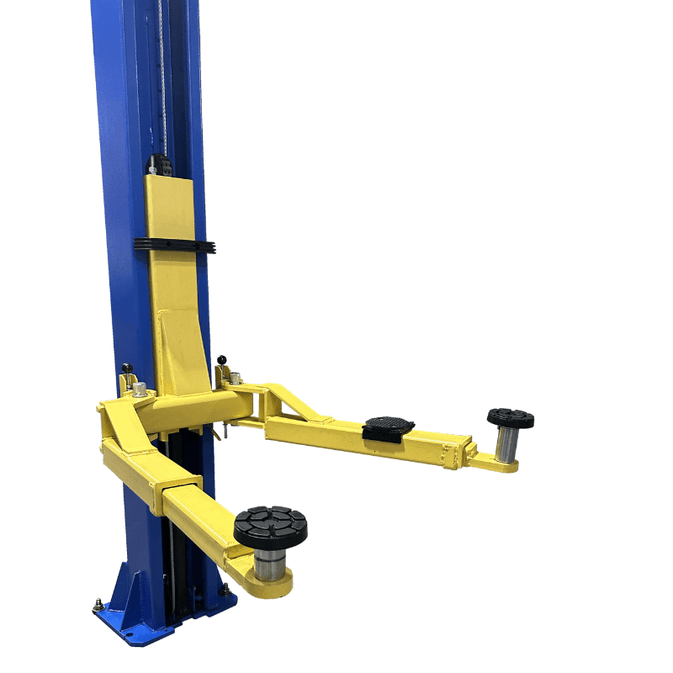

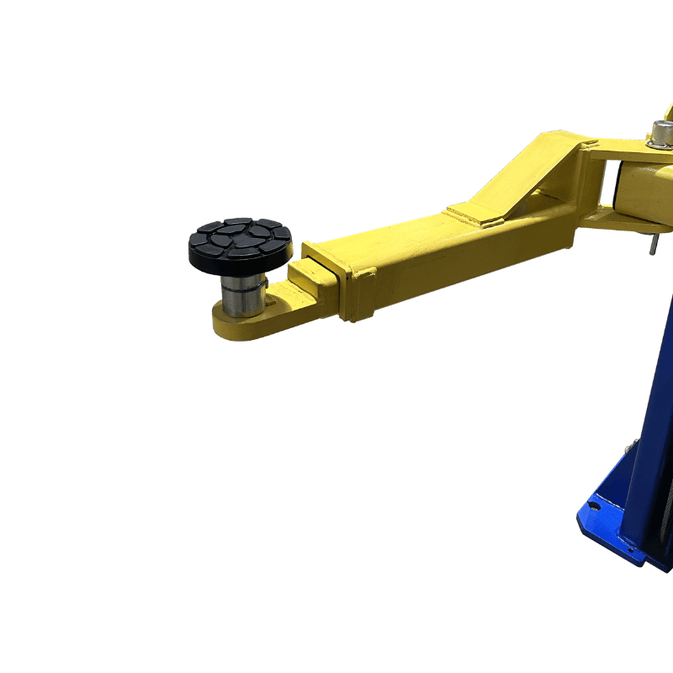

- Asymmetric Arms
- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System

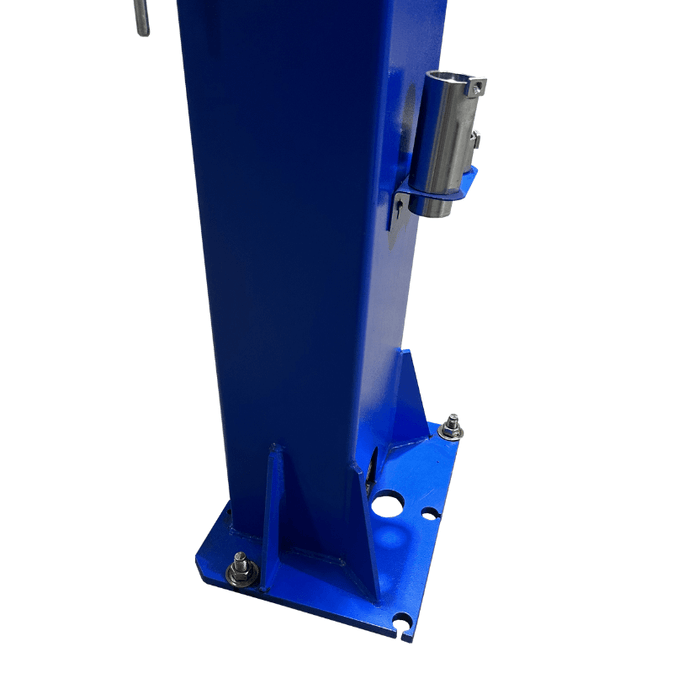

- Single Piece Column

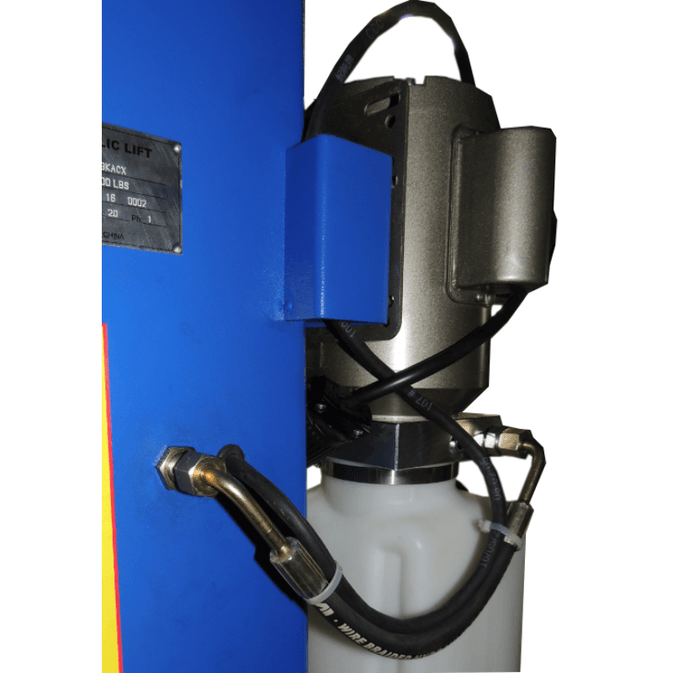

- Internal Hose routing
- Low profile Spin Up Lift Pads

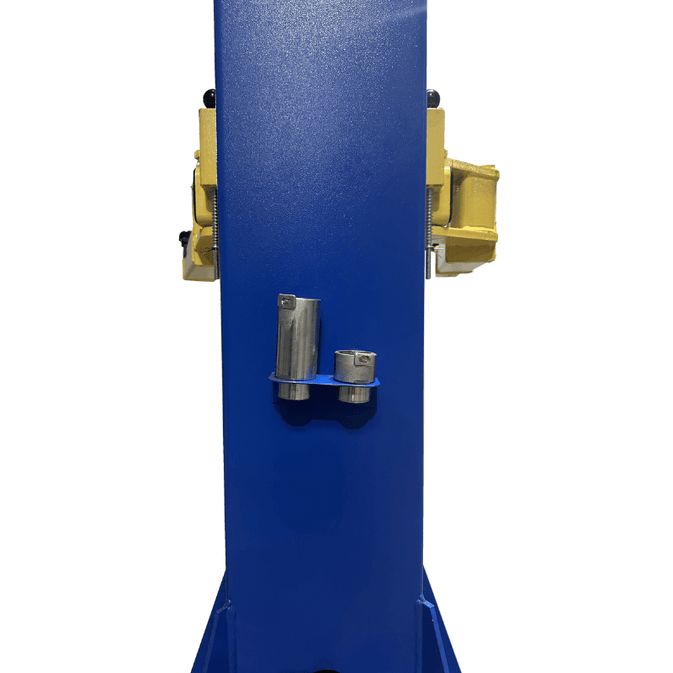

- Stackable Adapters Included
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
